Object Storage (S3)

By default, Portabase stores backups on the local disk of the server. For production environments, we strongly recommend using external storage to:

Decouple storage from compute resources.
Benefit from virtually unlimited capacity.
Ensure data protection through the reliability of dedicated storage solutions.

Provider configuration (if self-hosted)

This adds a MinIO service to your Docker Compose stack, typically behind Traefik.

Docker Compose changes

MinIO exposes two ports:

9000: S3 API (used by Portabase).
9001: Web Console (admin UI).

docker-compose.yml

name: portabase-stack

services:
  portabase:
    image: portabase/portabase:latest
    container_name: portabase-app
    env_file: .env
    volumes:
      - portabase-private:/app/private
    depends_on:
      db:
        condition: service_healthy
    networks:
      - traefik_network
      - default
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.portabase.rule=Host(`dashboard.example.com`)"
      - "traefik.http.routers.portabase.entrypoints=websecure"
      - "traefik.http.routers.portabase.tls.certresolver=myresolver"

  # ... standard DB service ...

  s3:
    image: docker.io/bitnami/minio:latest
    container_name: portabase-minio
    expose:
      - 9000
      - 9001
    volumes:
      - minio-data:/data
    environment:
      - MINIO_ROOT_USER=${S3_ACCESS_KEY}
      - MINIO_ROOT_PASSWORD=${S3_SECRET_KEY}
      - MINIO_DEFAULT_BUCKETS=${S3_BUCKET_NAME}
    networks:
      - traefik_network
      - default
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.api-s3.rule=Host(`api.s3.example.com`)"
      - "traefik.http.routers.api-s3.entrypoints=websecure"
      - "traefik.http.routers.api-s3.tls.certresolver=myresolver"
      - "traefik.http.services.api-s3.loadbalancer.server.port=9000"
      - "traefik.http.routers.webui-s3.rule=Host(`console.s3.example.com`)"
      - "traefik.http.routers.webui-s3.entrypoints=websecure"
      - "traefik.http.services.webui-s3.loadbalancer.server.port=9001"

volumes:
  portabase-private:
  postgres-data:
  minio-data:

networks:
  traefik_network:
    external: true

You can run a single-node RustFS instance using Docker Compose.

1. Docker Compose configuration

docker-compose.yml

name: portabase-stack

services:
# ... other services (portabase, db) ...

  rustfs:
    image: rustfs/rustfs:latest
    container_name: portabase-rustfs
    expose:
      - 9000
      - 9001
    environment:
      - RUSTFS_ADDRESS=0.0.0.0:9000
      - RUSTFS_CONSOLE_ADDRESS=0.0.0.0:9001
      - RUSTFS_CONSOLE_ENABLE=true
      - RUSTFS_ACCESS_KEY=${S3_ACCESS_KEY}
      - RUSTFS_SECRET_KEY=${S3_SECRET_KEY}
    volumes:
      - rustfs-data:/data
    networks:
      - traefik_network
      - default
    labels:
      - "traefik.enable=true"
      # Route 1: S3 API
      - "traefik.http.routers.rustfs-api.rule=Host(`s3.example.com`)"
      - "traefik.http.routers.rustfs-api.entrypoints=websecure"
      - "traefik.http.routers.rustfs-api.tls.certresolver=myresolver"
      - "traefik.http.services.rustfs-api.loadbalancer.server.port=9000"
      # Route 2: Web Console
      - "traefik.http.routers.rustfs-console.rule=Host(`console.s3.example.com`)"
      - "traefik.http.routers.rustfs-console.entrypoints=websecure"
      - "traefik.http.routers.rustfs-console.tls.certresolver=myresolver"
      - "traefik.http.services.rustfs-console.loadbalancer.server.port=9001"

volumes:
  rustfs-data:

networks:
  traefik_network:
  external: true

Configuration on the dashboard

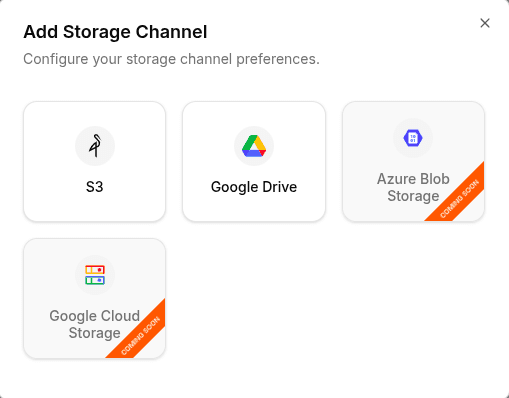

In Storage > Channels, click on + Add Storage Channel choose S3.

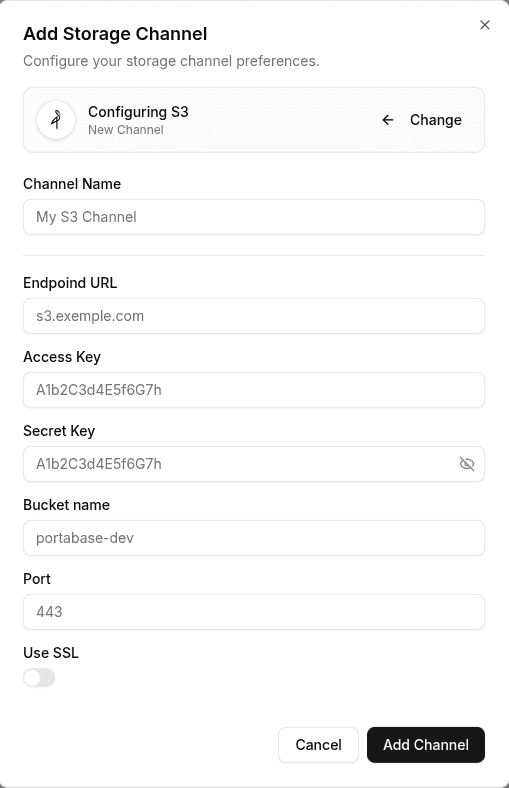

Enter the credentials.

Click Add Channel to finalize the configuration.

Verification

Restart the dashboard:

portabase restart .

docker-compose down && docker-compose up -d

Log into the web UI.
Trigger a manual backup on an agent.
Check your bucket (or MinIO console) to confirm the backup file exists.
